Ravika Dead Weight Tester Dealers in Mumbai
Media Instruments, a leading name in precision instrumentation, is proud to present Ravika Dead Weight Tester Dealers in Mumbai, and Ravika Dead Weight Tester Suppliers, Traders in Mumbai. With over 28 years of expertise in process control instruments, we have earned our customers’ trust through consistent accuracy and reliability. Ravika Dead Weight Tester also known as the Ravika Pressure Gauge Tester or simply the Deadweight Tester, this essential calibration device sets the standard for pressure verification in demanding industrial settings.
Overview of the Ravika Dead Weight Tester: Specifications, Types, Applications, and How It Works
Media Instruments’ Ravika Dead Weight Tester conforms to rigorous standards-ISO 376 and ASTM E74 for force calibration, ISO 9001 quality management, and traceable calibration under ISO/IEC 17025. Optional CE marking and ATEX approval ensure safety even in explosive atmospheres.
Key specifications at a glance:
- Range (DW10): 0.1–2.5 kgf/cm² (0.01 kgf/cm² steps) up to 100 kgf/cm² (1 kgf/cm² steps) for higher models
- Accuracy: ±0.03% of reading (optional ±0.05%, ±0.1%)
- Operating Fluid: Multigrade hydraulic oil
- Environmental Conditions: 23 °C ± 1 °C, 50 % ± 10 % RH
Types available include the DW10–DW16 series for basic ranges, DW20–DW26 for mid-range applications with lever priming pumps, and DW30 series offering dual-piston assemblies for low- and high-pressure calibration in one unit. Typical applications span the automobile, pharmaceuticals, petrochemical, power generation, and aerospace industries-anywhere precise pressure calibration is mission-critical.
Ravika Dead Weight Tester Suppliers and Traders in Mumbai
We have specialized in Ravika Dead Weight Tester distribution, trading, and after-sales support for nearly three decades. Our instruments are widely used at major refineries and quality labs across Mumbai, Maharashtra.
- Dealer & Supplier Experience: 28 years manufacturing; 4 years in Mumbai market
- Project Track Record: 60+ projects completed locally
- Client Satisfaction: 99% positive feedback
- Team Strength: 70+ skilled engineers and support staff
Our comprehensive stock and swift logistics ensure that your calibration needs are met without delay.

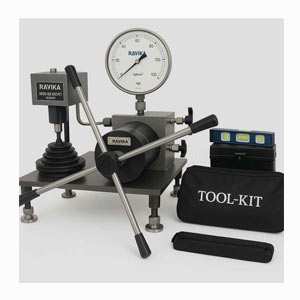

What Is a Ravika Dead Weight Tester?
A Ravika Dead Weight Tester is a precision instrument that uses calibrated weights to generate a known pressure on a free-floating piston. This pressure is then used to verify or calibrate pressure gauges, transmitters, and sensors.
- Standard Certification: ISO 376, ASTM E74
- Quality Certification: ISO 9001; calibration traceable under ISO/IEC 17025
- Safety Certification: CE-marking per Machinery Directive 2006/42/EC; optional ATEX 94/9/EC
Specification of the Ravika Dead Weight Tester
| Model | Range (kgf/cm²) | Step (kgf/cm²) | Max (bar) | Accuracy |
|---|---|---|---|---|
| DW10 | 0.1 – 2.5 | 0.01 | 2.5 | ±0.03% |
| DW11 | 0.1 – 6 | 0.05 | 6 | ±0.05% |
| DW12 | 0.2 – 16 | 0.05 | 16 | ±0.03% |
| DW13 | 0.4 – 25 | 0.1 | 25 | ±0.05% |
| DW14 | 0.4 – 40 | 0.1 | 40 | ±0.03% |
| DW15 | 1 – 60 | 0.1 | 60 | ±0.05% |
| DW16 | 1 – 100 | 0.1 | 100 | ±0.03% |
Note: Incremental weights provide finer resolution at extra cost.
Types of Ravika Dead Weight Tester
Being the best adhesive dispensing machine suppliers in India, our all-types of new adhesive dispensing machines are filled with new features such as:
- Basic Series (DW10–DW16): These units feature a large-capacity screw pump and removable oil reservoir for straightforward, small-scale calibration tasks. Ideal for workshop environments where portability and simplicity matter.
- Mid-Range Series (DW20–DW26): Equipped with a lever-operated priming pump, these testers deliver continuous oil flow for large gauges or external pipelines. They offer a unique closed-circuit design to remove air efficiently.
- Dual-Range Series (DW30): This advanced model contains two free-piston assemblies, enabling both low-pressure and high-pressure calibration in one instrument. It provides significant cost savings for multi-range requirements.
Applications of the Ravika Dead Weight Tester
- Automobile Industry: Verifying pressure sensors in engines and fuel systems.
- Pharmaceuticals: Ensuring meter-to-meter repeatability in tablet press hydraulics.
- Oil & Gas: Certifying pipeline pressure transmitters under harsh conditions.
- Power Generation: Calibrating boiler and turbine safety valves for reliable operation.
- Research & Training: Supporting engineering colleges with hands-on calibration labs.
How Ravika Dead Weight Tester Works
The Ravika Dead Weight Tester operates on the principle that pressure on a known piston area creates a force balanced by precise weights. By stacking calibrated masses on the weight carrier, the generated pressure can be adjusted incrementally. Once equilibrium is reached, the gauge under test shows a known pressure, allowing accurate calibration.
Ravika Dead Weight Tester Ordering, Compliance, and Safety Information
When you place an order, please specify the model, range units (kgf/cm², bar, psi, kPa), and any optional features such as ATEX certification. All orders comply with ISO 9000 and CE-machinery directives.
Note: For order
- Address: 401, A-Wing, 4th Floor – Malhar Pride, Shree Control Chowk, Near Canara Bank, Narhe, Pune – 411041
- Phone: +91 89560 63349 | +91 98816 44294
- Email: sales@mediainstrument.com_create_guid
Why Choose Us for Ravika Dead Weight Tester in Mumbai?
- Innovative & High-Quality Products: Advanced technology ensures precision and durability.
- Customized Solutions: Tailored configurations meet your specific industry needs.
- Reliable Performance: Designed for long-term stability in industrial environments.
- Dedicated Customer Support: Expert guidance and prompt after-sales service.
Thanks to these strengths, Media Instruments remains the top Ravika Dead Weight Tester Dealers in Mumbai and Suppliers in Mumbai.
Get Your Ravika Dead Weight Tester in Mumbai | Media Instruments
Media Instruments is your trusted Ravika Dead Weight Tester Dealers in Mumbai, Ravika Dead Weight Tester Suppliers in Mumbai, and Ravika Dead Weight Tester Traders in Mumbai.
Ready to enhance your calibration accuracy? Request a Quote or Download Our Spec Sheet today to get started. We look forward to partnering with you for precise, compliant pressure calibration solutions.
